Dell XPS 13-9350 Service Manual PDF (English)

The Dell XPS 13-9350 user manual PDF download is available now. The manual comes in pdf format. This device run on Windows 10 Home operating system, it's powered by Intel® Core™ i3-6100U processor (3M Cache, up to 2.3 GHz). It has 13.3-inch UltraSharp™ Quad HD+ (3200x1800). Other main specs and features as follow:
  • Intel® Core™ i5-6200U processor
  • Intel® Core™ i7-6500U processor
  • Windows 8.1 / Windows 7 Professional/Ubuntu
  • 9-15mm (0.33 – 0.6") | 304mm (11.98") |200mm (7.88")
  • 4GB, 8GB or 16GB Dual Channel LPDDR3 SDRAM at 1866MHz
  • Intel® HD Graphics 520
  • 13.3-inch FHD (1920 x 1080) InfinityEdge display, anti-glare
  • 400-nits, 1000:1 contrast ratio, 72% color gamut
  • 170° wide viewing angle - 85° / 85° / 85° / 85°
  • Capacitive touchscreen option – 10-finger touch support
  • Stereo speakers professionally tuned with Waves MaxxAudio®
  • 128GB SATA, 256GB PCIe, 512GB PCIe, 1TB PCIe SSD
  • 56WHr battery
  • 45W AC adapter
  • Widescreen HD (720p) webcam
  • Intel® 8260 2x2 802.11ac + Bluetooth 4.1
  • 2 USB 3.0 (1 with PowerShare)
  • 3–in-1 Card Reader (SD, SDHC, SDXC)
The Dell XPS 13-9350 Service Manual PDF provide detail reference information such as before working inside your computer on page 8, after working inside your computer on page 10, tutorial removing and replacing: base cover on page 11 and 14, battery on page 15 and 18, solid-state drive on page 19 and 21 and many more.
Dell XPS 13-9350 Service Manual PDF (English)

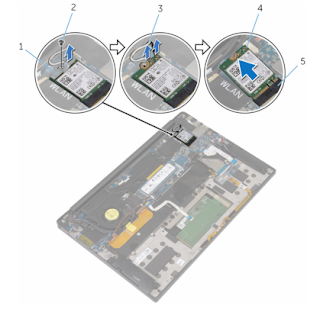

The Wireless Card - Read on page 23
Then about removing and replacing: the speakers on page 27 and 29, Coin- cell battery on page 30 and 32, I/O Board on page 46 and 49, keyboard control board on page 50 and 53, display assembly on page 54 and 60, etc.
Dell XPS 13-9350 Service Manual PDF (English)
Dell XPS 13-9350 The Speaker - Read on page 27
Other important information such as flashing the BIOS on page 85, Getting help and contacting Dell on page 86.
Table of content for the Dell XPS 13-9350 service manual PDF :
  • Before working inside your computer
  • After working inside your computer
  • Removing the base cover
  • Replacing the base cover
  • Removing the battery
  • Replacing the battery
  • Removing the solid state drive
  • Replacing the solid state drive
  • Removing the wireless card
  • Replacing the wireless card
  • Removing the Speakers
  • Replacing the Speakers
  • Removing the Coin-Cell Battery
  • Replacing the Coin-Cell Battery
  • Removing the heat sink
  • Replacing the heat sink
  • Removing the status-light cable
  • Replacing the status-light cable
  • Replacing the touchpad
  • Replacing the touchpad
  • Removing the I/O Board
  • Replacing the I/O Board
  • Removing the I/O Board cable
  • Replacing the I/O Board cable
  • Removing the keyboard controls board
  • Replacing the keyboard controls board
  • Removing the display assembly
  • Replacing the display assembly
  • Removing the system board
  • Replacing the system board
  • Removing the power adapter port
  • Replacing the power adapter port
  • Removing the fan
  • Replacing the fan
  • Removing the keyboard
  • Replacing the keyboard
  • Removing the palm rest
  • Replacing the palm rest
  • flashing the BIOS
  • Getting help and contacting Dell
